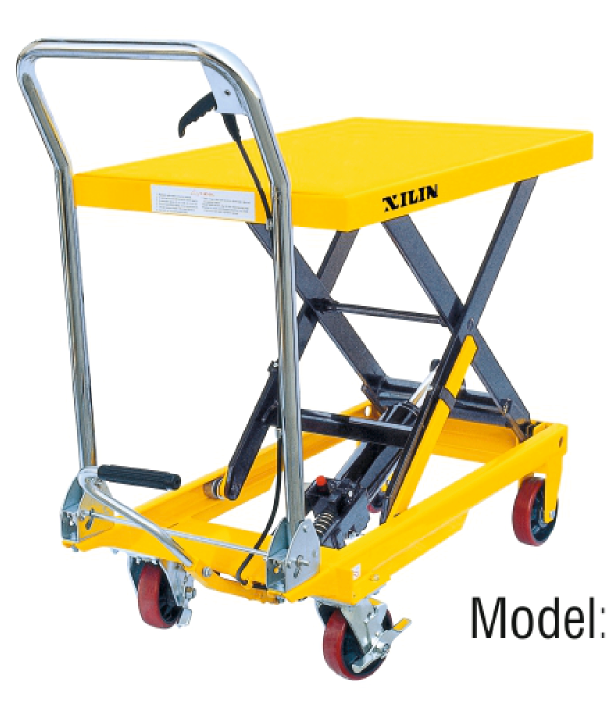

Scissor Lift Table

EU type

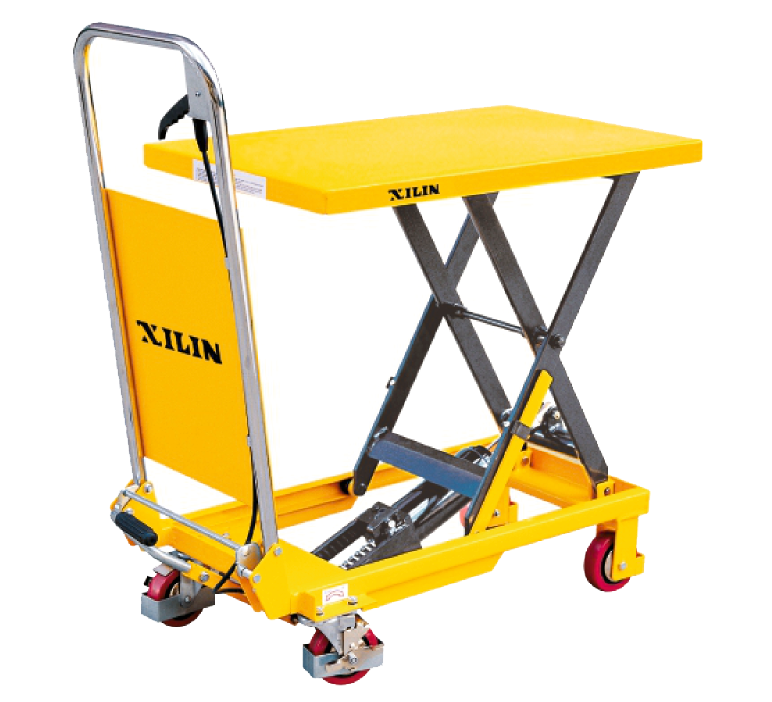

Model: SP150

  • Welded steel frame with durable coat finish.
  • Durable hydraulic pump ensures a long service life.
  • Robust casters with safety wheel guard enhance safety while operation.
  • Easy action foot operated foot hydraulic pedal for raising the lift table to a desired height level.
  • Safety back guard protects operators from dangers.
  • With supporting plat on side of arm to ensure the safety service.
  • Convenient finger release smoothly lowers even heavy loads.
  • With over load by pass valve to protect operator and pump.

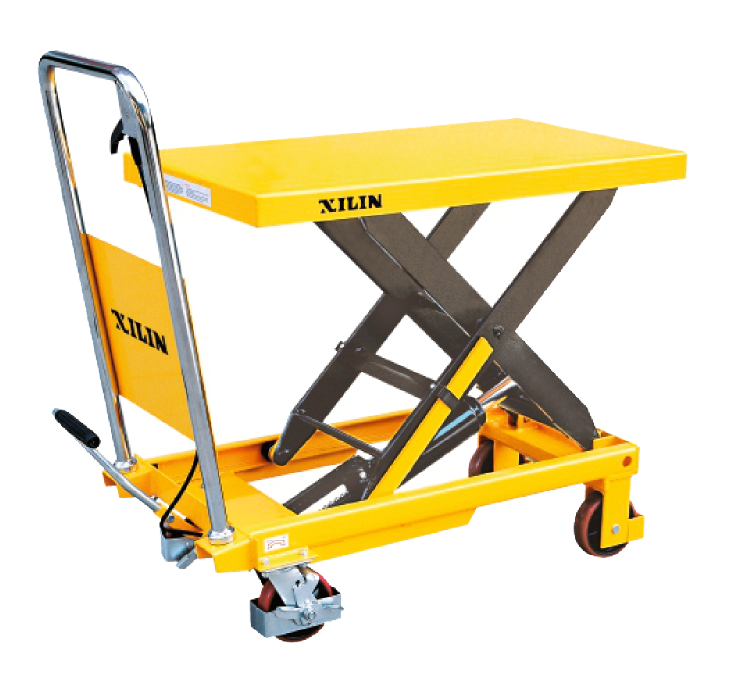

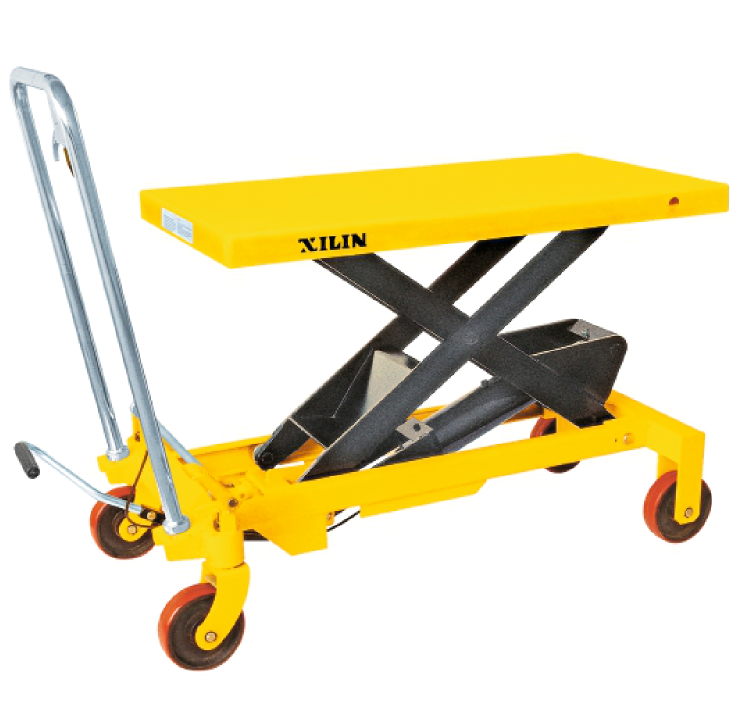

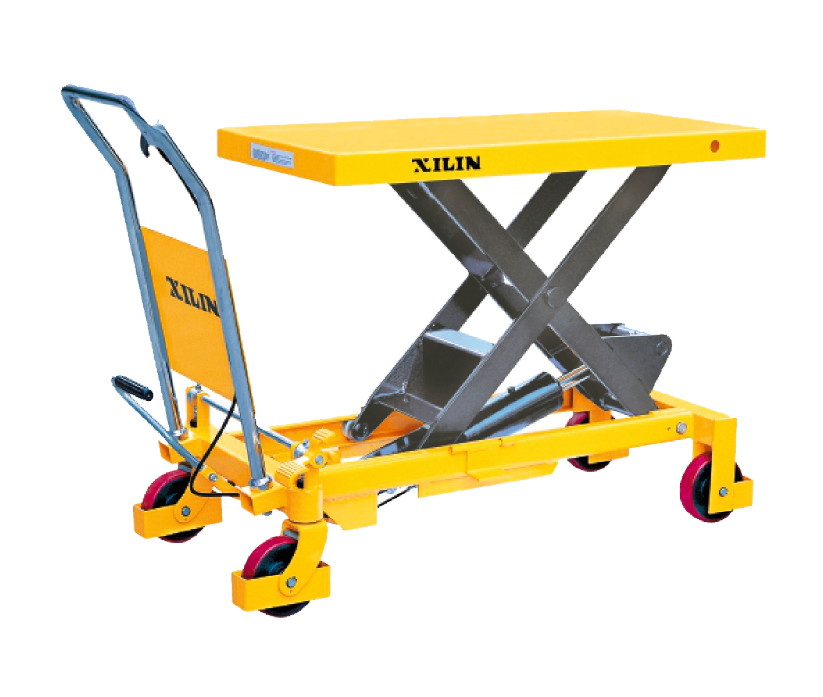

Model: SP800/1000/1500

Model: SP300/500

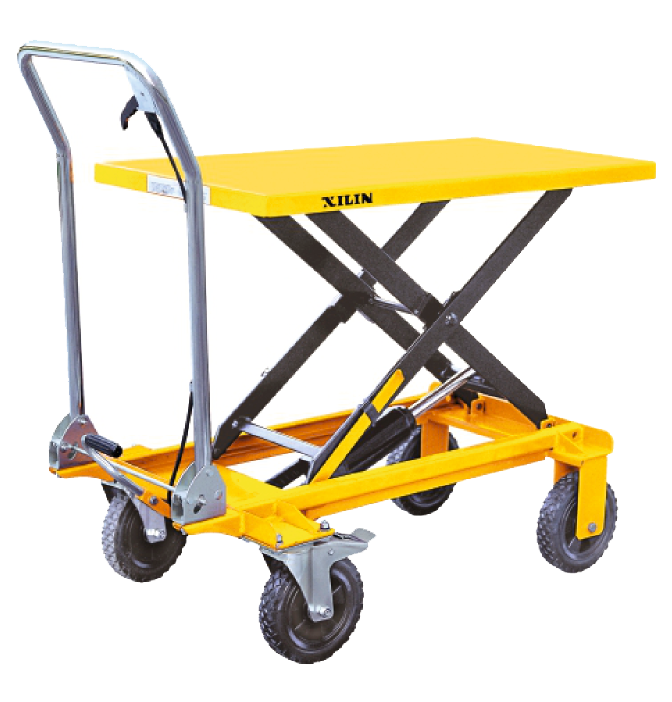

US type

Model: SP800/1000/1500

Model: SP300/500

Model: SP800/1000/1500

Model: SP300/500

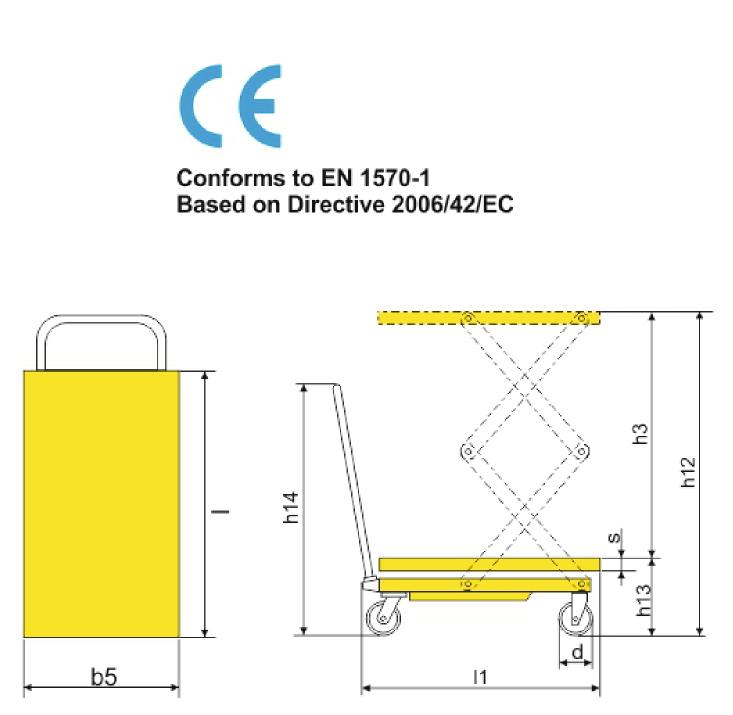

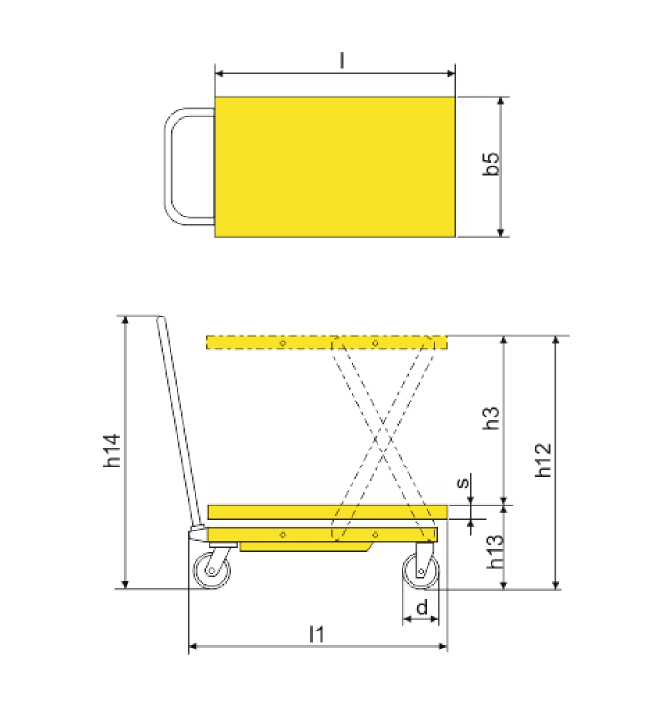

Spesification for EU type
Model SP150 SP300/SP500 SP800 SP1000 SP1500
Capacity kg 150 300/500 800 1000 1500
Max. lift height h(mm) 740 900 1000 1000 1000
Min. height of table h(mm) 225 340 420 380 420
Lifting height h(mm) 515 560 580 620 580
Table size lxb5xs(mm) 740x450x35 855x500x50 1000x510x60 1016x515x60 1220x610x60
Total height h(mm) 935 970 996 962 962
Overall lenght l(mm) 830 925 1150 1170 1379
Foot pedal cycles to max height <25< /td> <32 /<45 <70< /td> <55< /td> <70< /td>
Wheel diameter d(mm) 100 127 150 150 150
Qty. /20' Container PCS 192 120 52 52 48
Servise weight kg 44 81/87 115 115 135
Carton size mm 880x480x265 950x530x390 1190x630x460 1190x630x430 1410x730x450
Spesification for US type
Model SP150 SP300/SP500 SP800 SP1000 SP1500
Capacity kg 150 300/500 800 1000 1500
Max. lift height h(mm) 740 900 1000 1000 1000
Min. height of table h(mm) 225 340 420 380 420
Lifting height h(mm) 515 560 580 620 580
Table size lxb5xs(mm) 740x450x35 855x500x50 1000x510x60 1016x515x60 1220x610x60
Total height h(mm) 935 970 996 962 962
Overall lenght l(mm) 830 925 1150 1170 1379
Foot pedal cycles to max height <25< /td> <32 /<45 <70< /td> <55< /td> <70< /td>
Wheel diameter d(mm) 100 127 150 150 150
Qty. /20' Container PCS 192 120 52 52 48
Servise weight kg 44 81/87 115 115 135
Carton size mm 880x480x265 950x530x390 1190x630x460 1190x630x430 1410x730x450

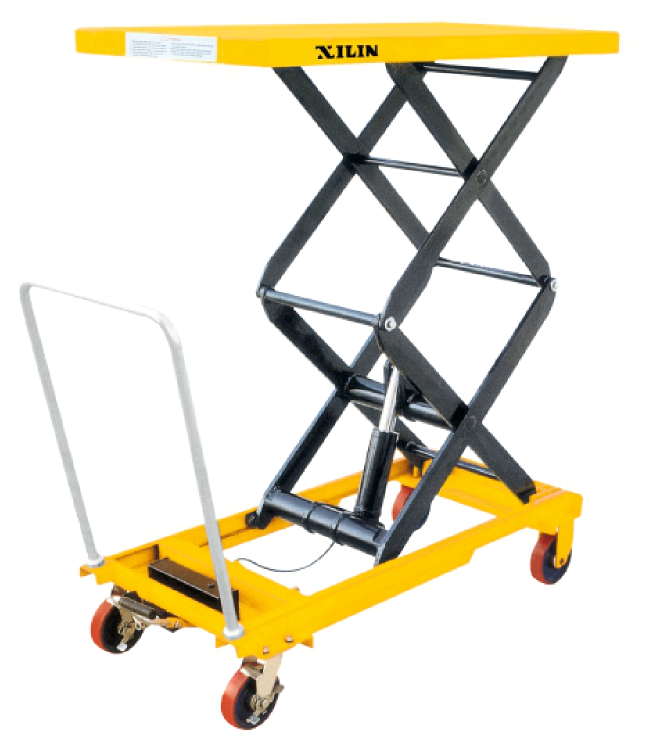

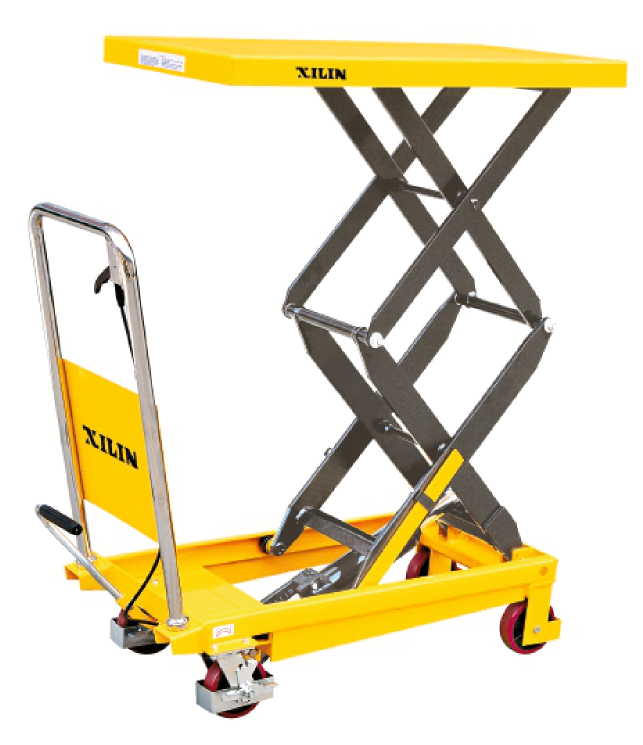

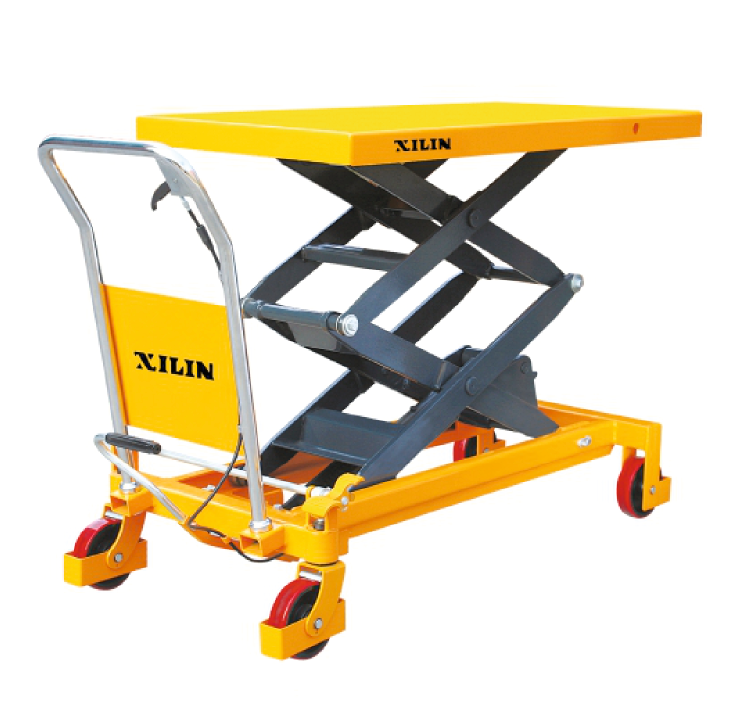

Double Scissor Lift Table

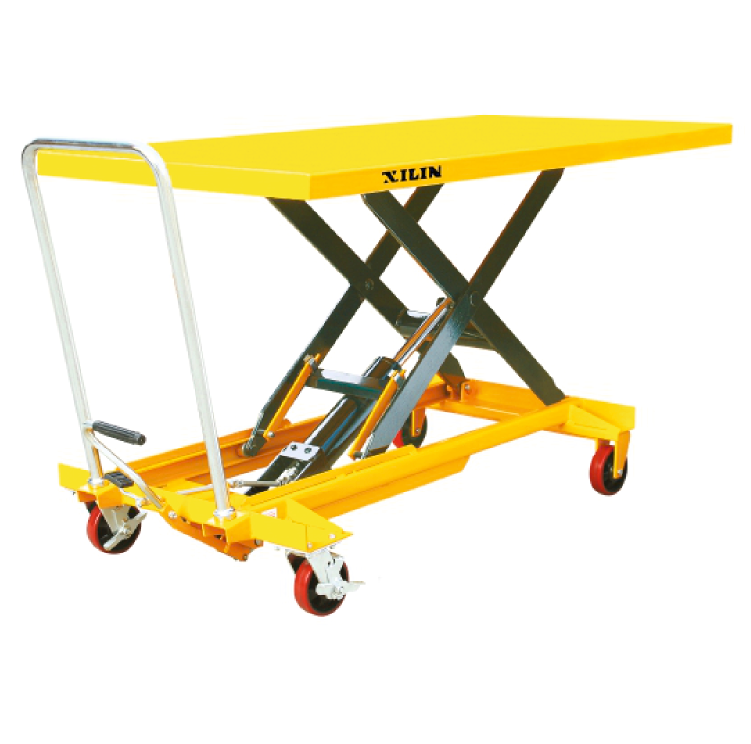

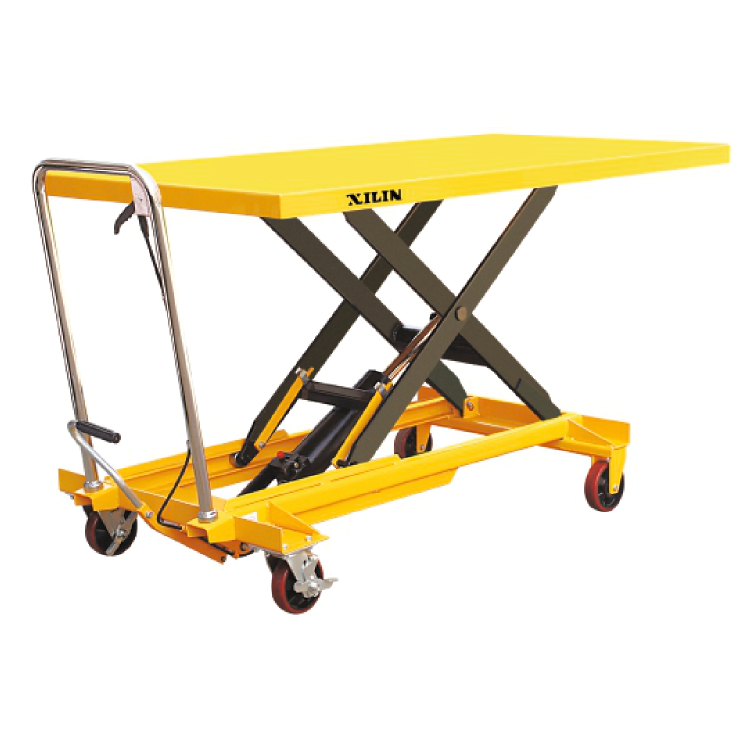

Extra Large Plate Lift Table

Model: SPS150/SPS350

Model: SPF680

Model: SPS800

Model: SPT500

Model: SPTJ500

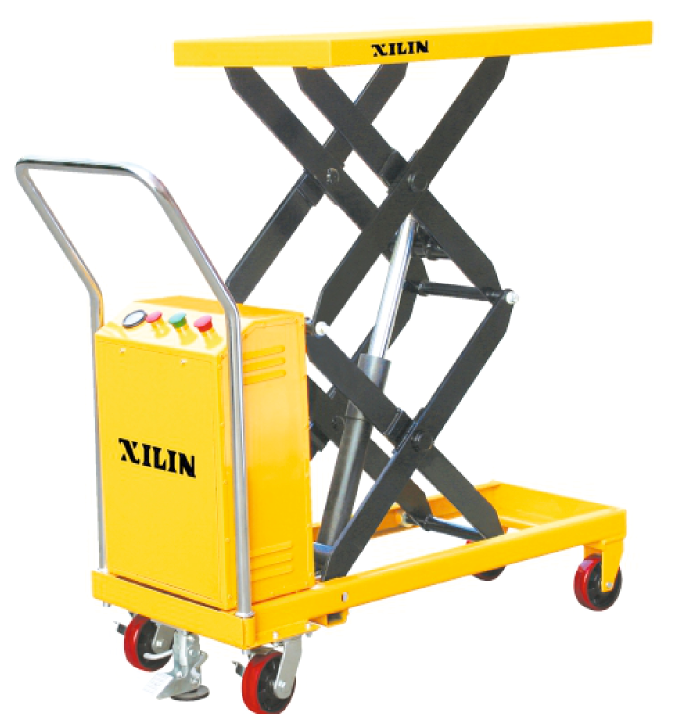

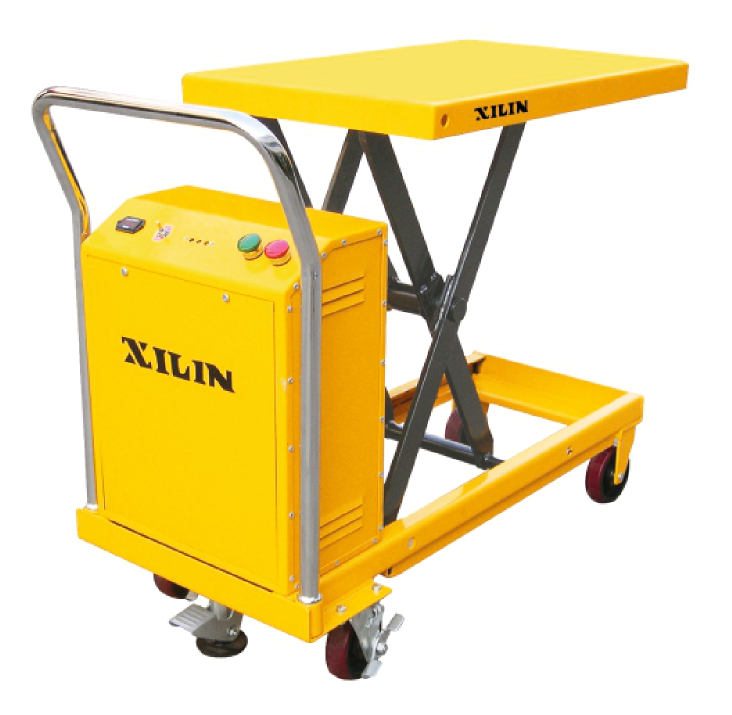

Electric table truck

Model: DP30/DP50

Model: DPS35

Model SPS150 SPS350 SPS800 SPF680 SPT500/J500
Capacity kg 150 300 800 680 500
Max. lift height h(mm) 110 1300 1500 1500 900
Min. height of table h(mm) 302 350 475 474 310
Lifting height h(mm) 798 950 1025 1026 590
Table size lxb5xs(mm) 700x450x35 910x500x50 1220x610x60 1220x610x55 1600x800x50
Total height h(mm) 921 970 962 1038 970
Overall lenght l(mm) 773 980 1375 1289 1670
Foot pedal cycles to max height <30< /td> <60< /td> <70< /td> <35 /80 <55< /td>
Wheel diameter d(mm) 100 127 150 150 127
Qty. /20' Container PCS 168 110 48 44 30
Servise weight kg 64 105 172 170 136
Carton size mm 800x480x330 1010x530x390 1400x730x500 1320x630x480 1700x810x330
Model DP30 DP50 DPS35
Capacity kg 300 500 350
Max. lift height h(mm) 900 900 1320
Min. height of table h(mm) 300 300 405
Lifting height h(mm) 600 600 915
Table size lxb5xs(mm) 815x500x50 815x500x50 910x500x56
Total height h(mm) 1101 1101 1101
Wheel diameter d(mm) 127 127 127
Moter power kw 0.8 0.8 0.8
Lifting speed S <10< /td> <10< /td> <15< /td>
Lowering speed S 10 10 15
Battery voltage, nominal capacity K V/Ah 24/33Ah 24/33Ah 24/33Ah
Qty./20' Container PCS 20 20 20
Service weight kg 111 114 150
Carton size mm 1125x540x340 1125x540x340 1125x540x450

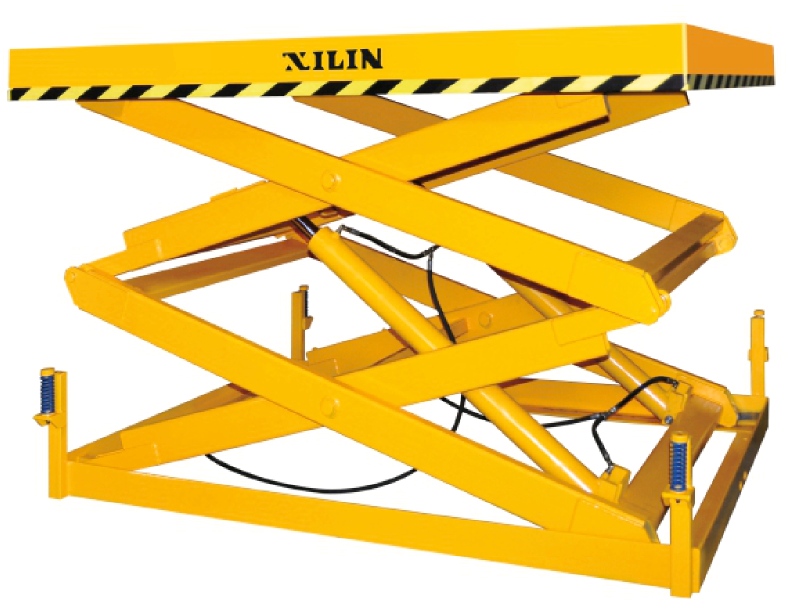

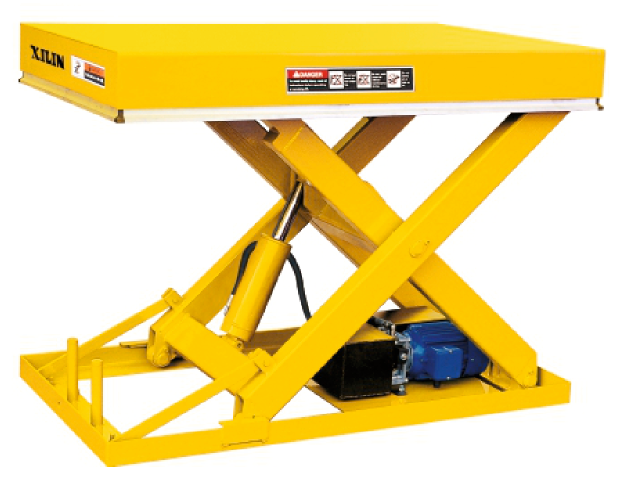

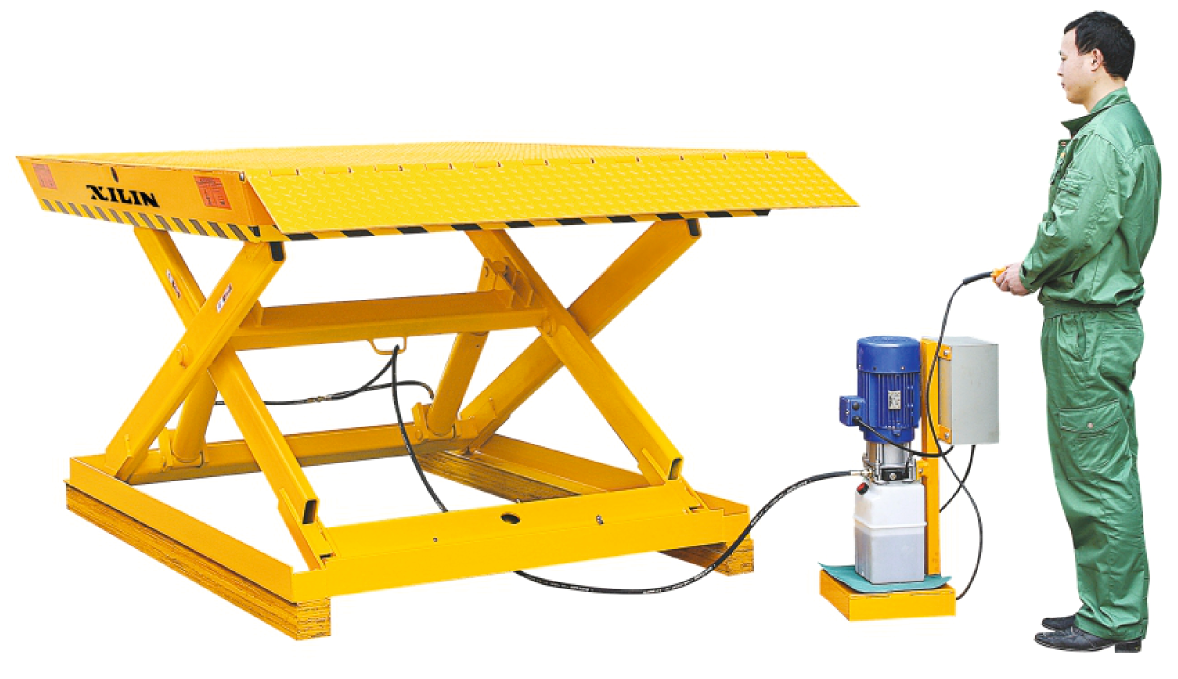

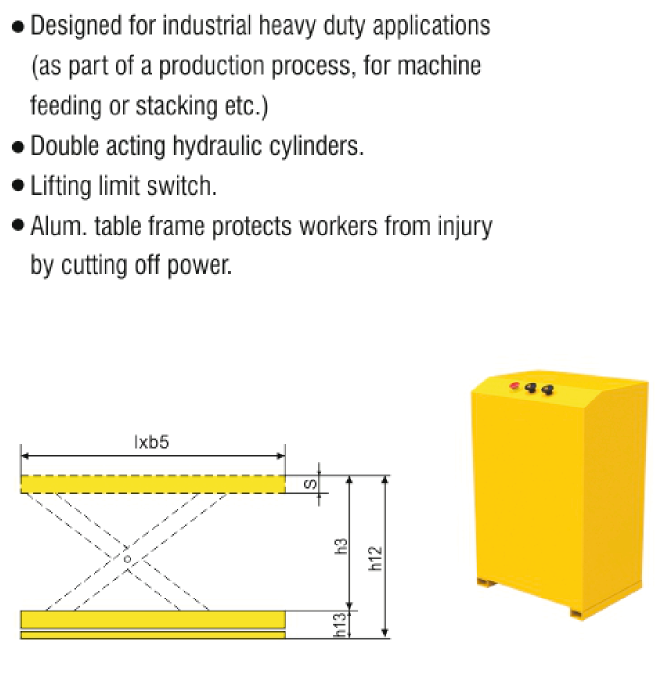

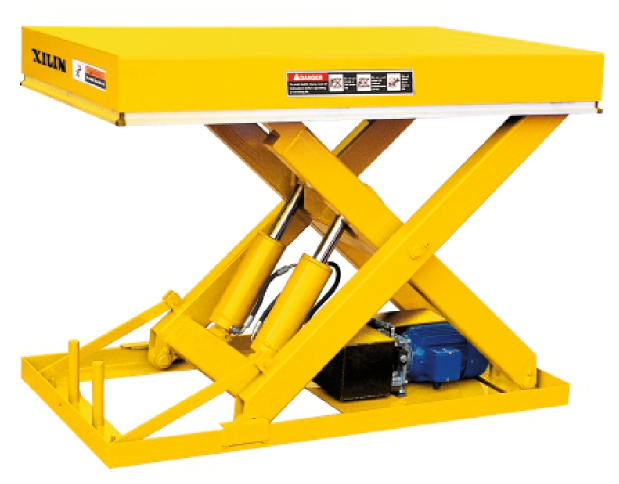

Stationary Lift Table

Model: AL1

Double hydraulic pump

Model AL1
Capacity kg 2700
Max. lift height h(mm) 1700
Min. height of table h(mm) 220
Lifting height h(mm) 1480
Table size lxb5xs(mm) 2445x1830x195
Total height h(mm) 935
Motor kw 3.0
Voltage V 220/380
Rise time S 40
Lowering speed mm/s <150< /td>
Servise weight kg 945

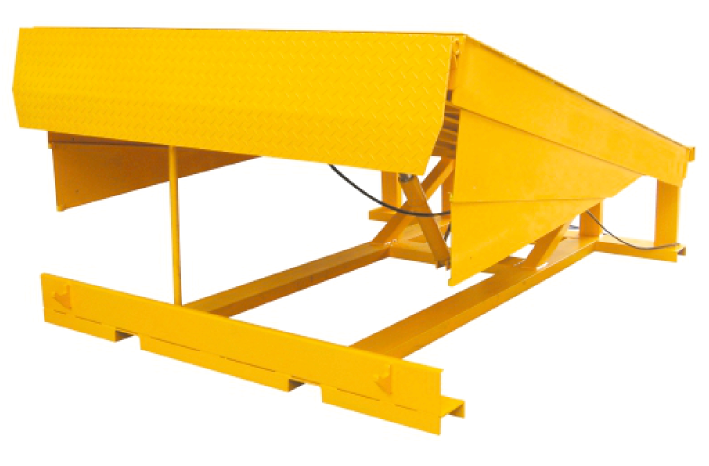

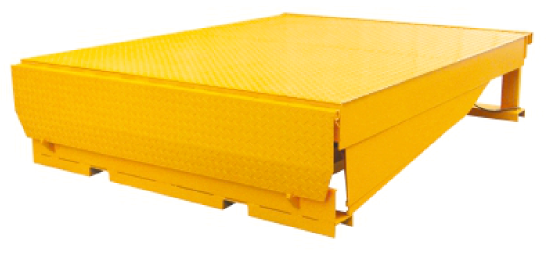

Dock leveler

Model: DL

Double hydraulic pump

Model: DG01/DG02

Model: DG03/DG04

Model DL
Capacity kg 6000 8000
Table size (mm) 2500x2000 2500x2000
Lip board size mm 2000x400 2000x400
Lifting height up (mm) 400 400
Lifting height down (mm) 300 300
Exterior size lxb5xs(mm) 2640x2040x600 2640x2040x600
Motor kw 0.75 0.75
Voltage V 220/380 220/380
Pithead size (mm) 2580x2040x600 2580x2040x600
Servise weight kg 1110 1150
Model DG01 DG02 DG03 DG04 DGS20
Capacity kg 1000 2000 1000 2000 2000 2000 2000
Max. lift height h(mm) 1000 1000 1000 1000 2000 3500 4000
Min. height of table h(mm) 190 230 190 230 425 500 500
Lifting height h(mm) 810 820 810 820 1580 3000 3500
Table size lxb5xs(mm) 1350x800x80 1350x800x130 1500x1000x80 1500x1000x130 1500x1400x130 2240x1590x180 2500x2000x180
Motor power kw 0.75 0.75 0.75 0.75 1.5 3 4
Input voltage V 220/380 220/380 220/380 220/380 220/380 220/380 220/380
Rise time S 19 38 19 38 60 80 90
Lowering speed mm/s <150< /td> <150< /td> <150< /td> <150< /td> <150< /td> <150< /td> <150< /td>
Servise weight kg 206 248 216 268 520 1250 1550
